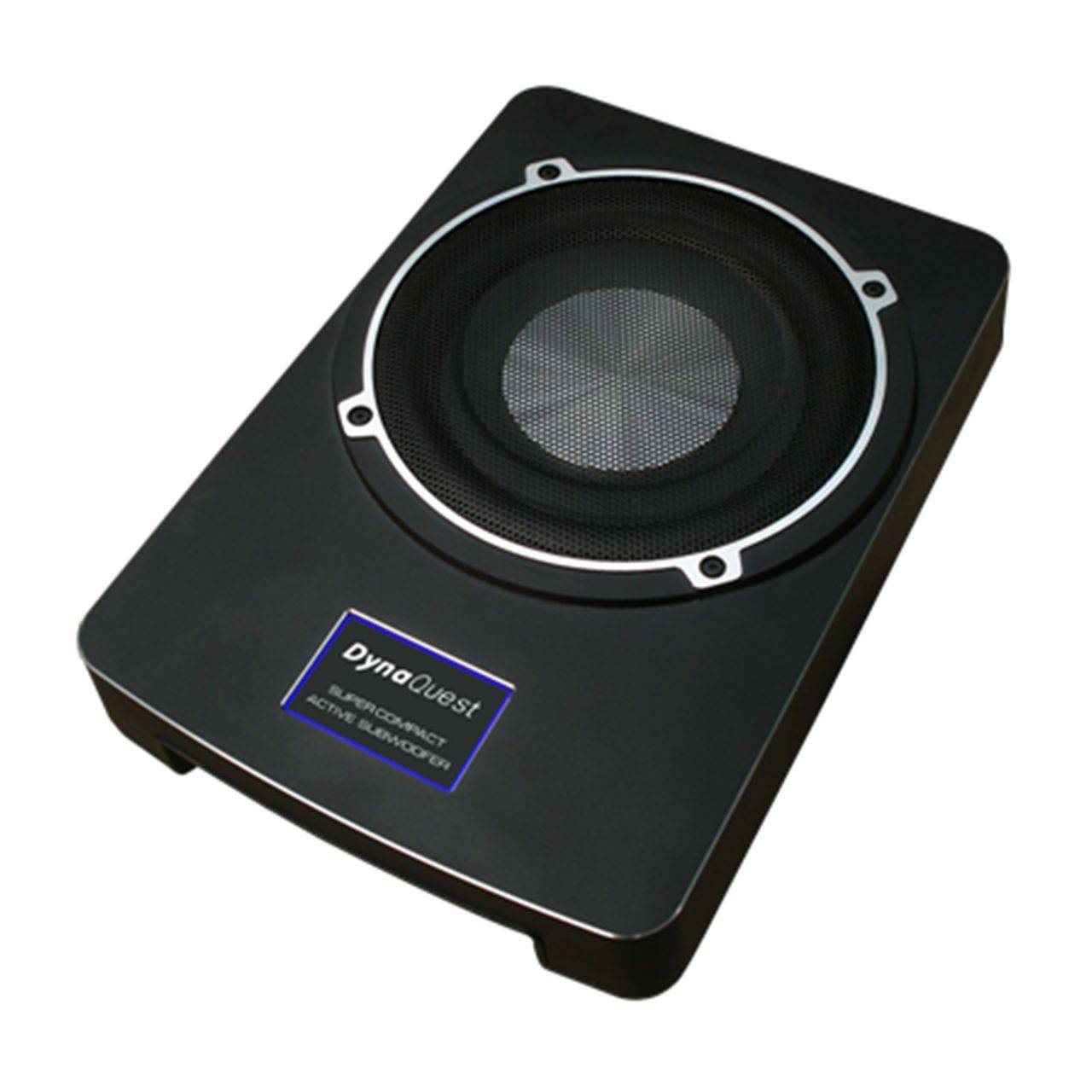

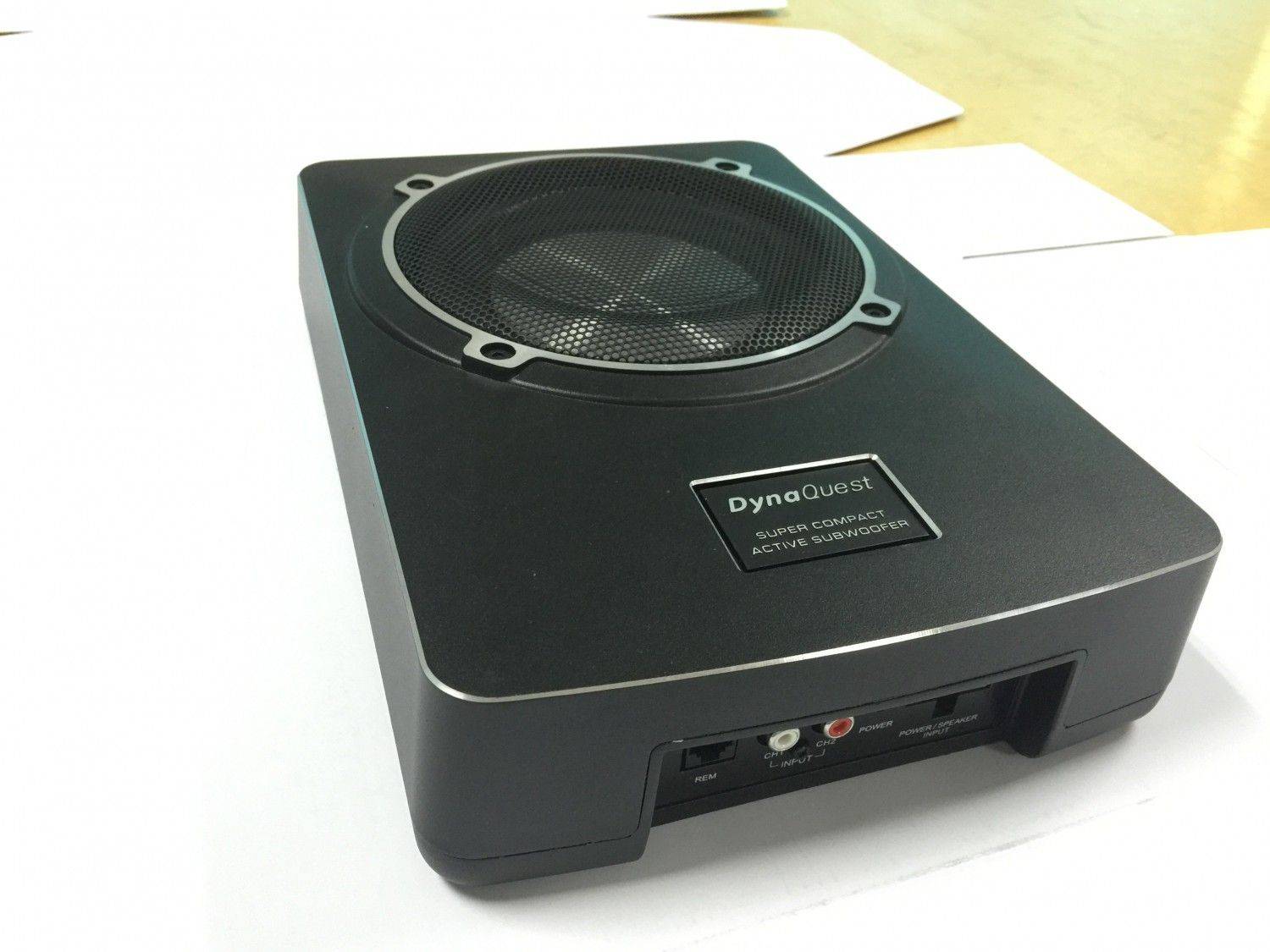

Active Subwoofer

DQC-600F
DQC-600F
DQC-600F
DQC-600F

DQC-600F

FEATURE
  • 100W maximum power output.
  • Built in 100W(50Wx2) RMS power Amplifier-powerful and undistorted
low frequency response.
  • 6〞subwoofer sealed enclosure design-extended low frequency response.
  • SUB crossover frequency adjustment (30Hz-100Hz).
  • Speaker input (0.8V)
  • RCA input (82mV)
  • Maximum current consumption (12A)
  • LED power indicator.
  • Included with remote controller.
  • Super Compact design-easy to install in car.
SPECIFICATIONS
Maximum output power 160W (80W * 2)
Rated power 100W (50W * 2)
Output impedance 3 ohm + 3 ohm
Frequency Response 30 ~ 100Hz
S/N (A) 91dB
Maximum Current Consumption 12A
Phase Switch 0o ~ 180o
Sensitivity (Distortion level 1%) RCA input 82mV
Speaker input 0.8V
Voltage 14.4V (10V ~ 16V)
Size 289 * 220 * 75 mm
Weight (including accessories) 4.4Kg
