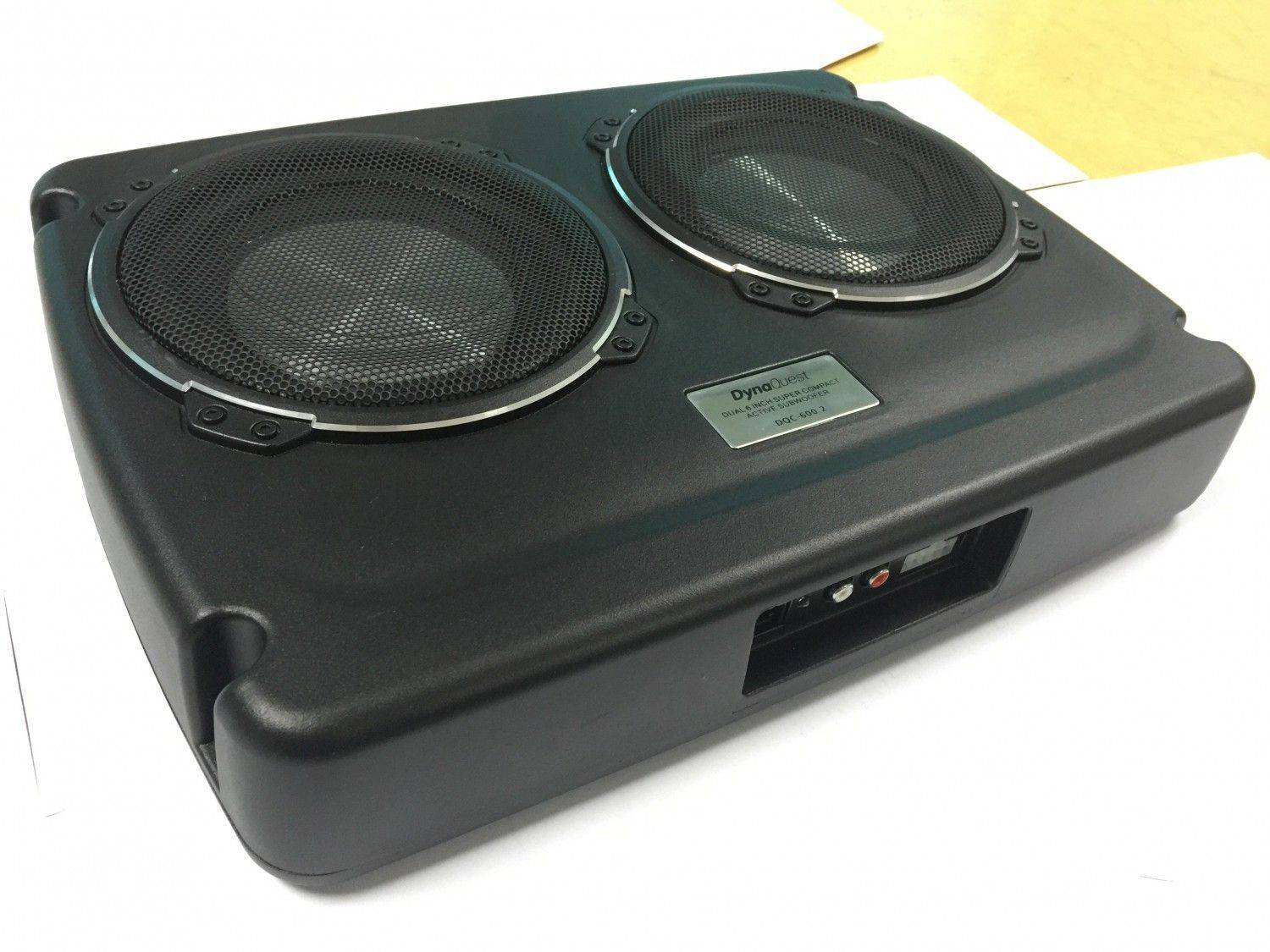

Active Subwoofer
DQC-600.2
FEATURES
- 320W maximum power output.
- Built in 160W RMS power Amplifier-powerful and undistorted low frequency response.
- Dual 6〞subwoofer sealed enclosure design-extended low frequency response.
- Subwoofer PHASE (0°/180°)
- SUB crossover frequency adjustment (30Hz-100Hz).
- Wide range GAIN adjustment (0.4V-8V).
- LED power indicator.
- Included with remote controller.
- Compact design-easy to install in car.
- Auto Remote On When Speaker High Level Input.
SPECIFICATIONS
| Maximum output power | 320W (80W*4) |
| Rated Power | 200W (50W*4) |
| Output impedance | 2 ohm + 2 ohm + 2 ohm + 2 ohm |
| Frequency Response | 30 ~ 100Hz |
| S/N (A) | 91dB |
| Maximum Current Consumption | 12A |
| Phase Switch | 0o / 180o |
| Sensitivity (Distortion level 1%) | RCA input 82mV Speaker input 0.8V |
| Voltage | 14.4V (10V~16V) |
| Size | 380 * 285 * 75 mm |
| Weight (include accessories) | 6.9 Kg |
